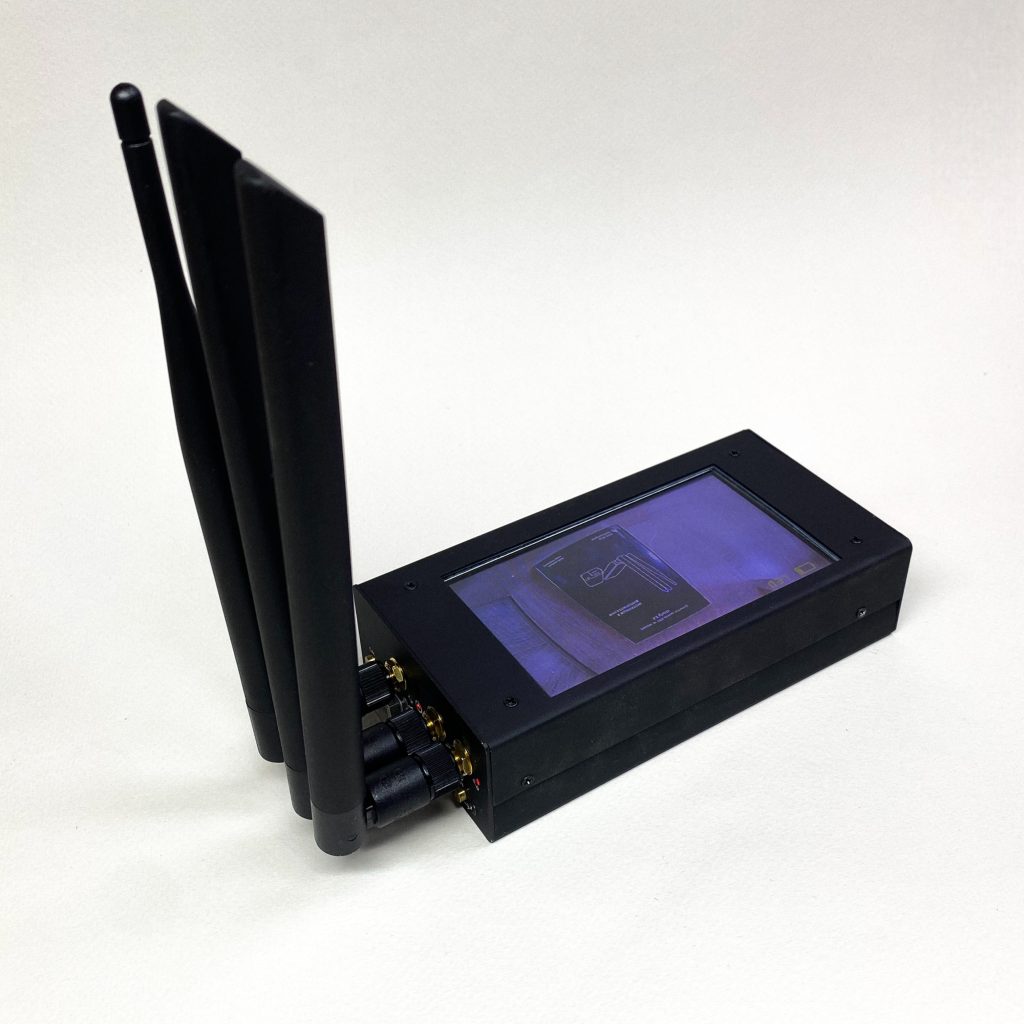

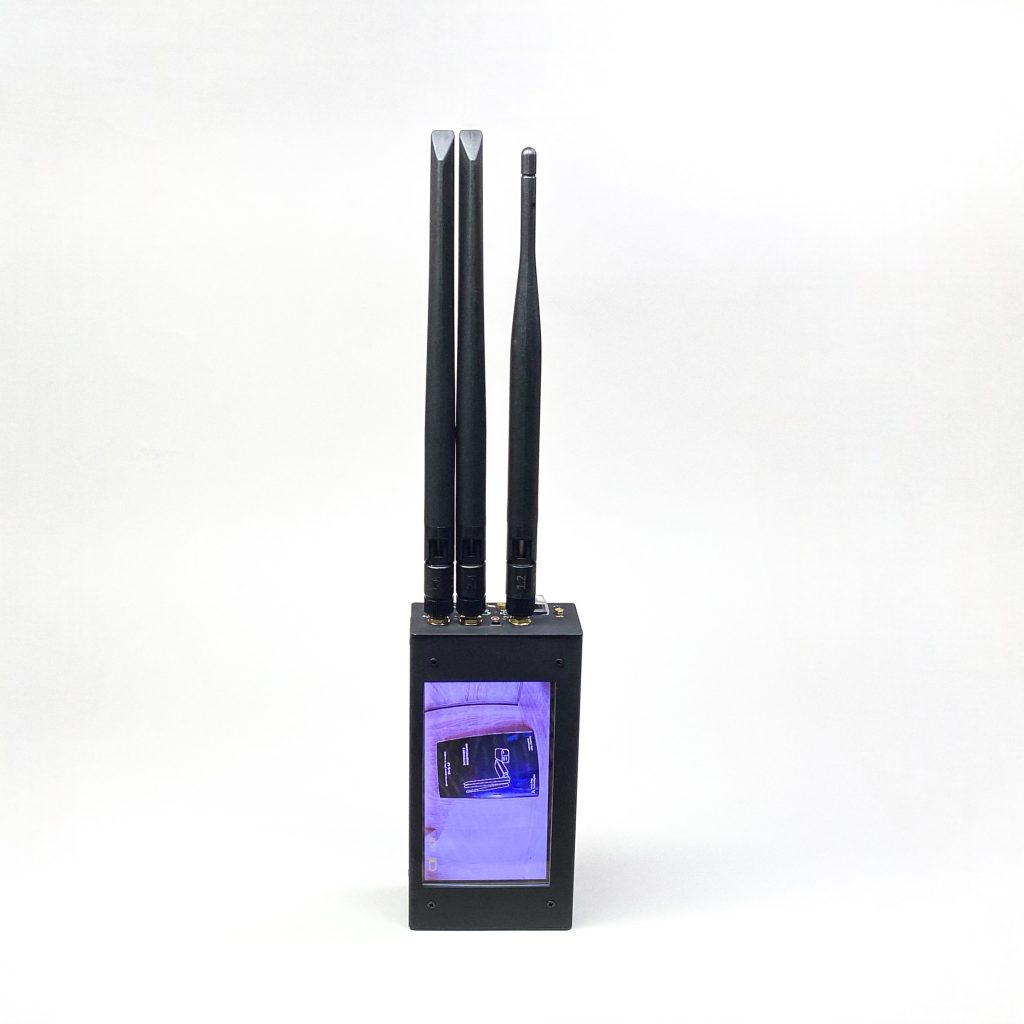

Obriy 1.4C is a wideband drone detector with a built-in display, capable of detecting FPV, Mavic, and certain fixed-wing drones (with video link without FHSS) across frequencies from 1 to 6 GHz (1050–2600, 2720–4000, 4000–6040 MHz).
Advantages
- Frequency range from 1 to 6 GHz (1050–2600, 2720–4000, 4000–6040 MHz)
- Allows detection of a wider variety of drones
- Сapable of detecting digital signals
- Mavic drones and reconnaissance UAVs operate on digital video, which almost no other detector can capture
- Field test: 700–1000 m, 1W transmitter at 5.8 GHz; range depends on ambient signal noise
- Metal, shielded housing with IP65 water protection
- Resistant to impacts and interference (caused by jammers and drones), which usually reduce sensitivity and detection range
- Protected against jamming and static; features built-in self-diagnostics
- Alerts you if the device malfunctions, and we provide warranty repair
- The “Obriy” series has been in production since July 2023
- Experience = reliability, as some issues are only discovered and resolved over time
- Integration with EW, UAV, UGV, and other systems
Performance characteristics
| Operating Frequency Ranges | 1050–2600, 2720–4000, 4000–6040 MHz |
| Step Size | 1 – 10 MHz |
| Battery | 10 000 mAh |
| Battery Life | Up to 8 hours |
| Charging Time | 6–8 hours |
| Connector | USB Type-C |
| Material | 100% anodized aluminum, 1–2 mm thick |
| Ingress Protection / IP Rating | IP66 |
| Ports | USB Type-C, Jack 3.5, SMA(х3) |
| Package Includes | Antennas, USB Type-C cable |
| Alerts | Vibration, sound, and light indicators, each of which can be turned off individually if needed |
| Weight (with antennas) | 485 ±10 g |
| Weight (without antennas) | 435 ±10 g |
